Oil Filling Production Line

Oil Filling Production Line

Oil Filling Production LineAutomatic oil flow filling machine Linear plastic anti-cover capping machine Rubber cap heat shrinking machine Automatic edible oil drum labeling machine Tape sealing machine Automatic oil flow filling machine The picture is for reference only.Applicable liquid:Concentrate......

Send Inquiry

Product Description

Oil Filling Production Line

Automatic oil flow filling machine


Linear plastic anti-cover capping machine


Rubber cap heat shrinking machine


Automatic edible oil drum labeling machine


Tape sealing machine

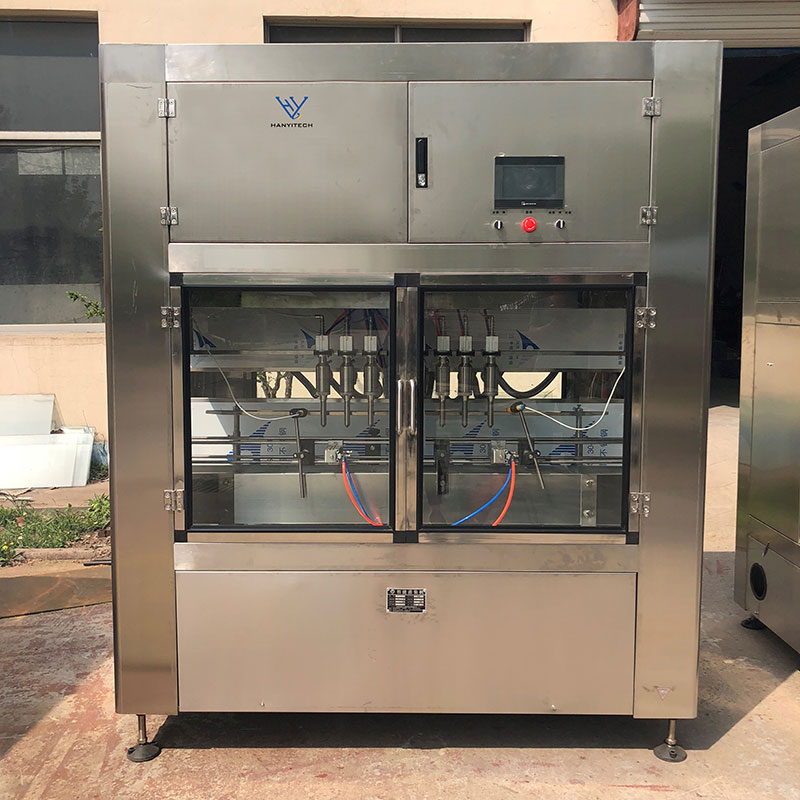

Automatic oil flow filling machine


The picture is for reference only.

Applicable liquid:

Concentrated and viscous liquids such as edible oil and lubricating oil.


Product description:

The automatic oil filling machine is under the calculation and control of high-speed PLC, through the human-machine dialogue interface, realizes linear stepless speed-regulating conveying, can adjust the filling capacity arbitrarily, and can be equipped with pneumatic capping or screw capping devices. Form a multi-station, one-machine, multi-functional production line. The filling machine assembly line integrates machine, electricity and gas, with unique design, complete functions, stable performance, high quality and beautiful appearance.


Two technical characteristics:

1. The unique multi-filling head and suck-back system designed for no dripping ensures that the production site and packaged products are not contaminated by liquid materials.

2. Using the man-machine interface touch control screen of Taiwan Weilun Company, which greatly facilitates the adjustment of parameters and the test of various functions.

3. The high-precision flow meter ensures that the filling accuracy is better than the "Regulations on the Measurement and Supervision of Quantitative Packaging Commodities" by the State Bureau of Technical Supervision, and the comprehensive filling error is less than 10g.

4. The height of the bottle can be adjusted according to needs, and the adjustment is simple, fast and accurate.

5. The filling nozzle has an umbrella or straight flush type to suit different liquid filling, and the umbrella type is suitable for liquid materials that are easy to foam.

6. The stepless regulator can adjust the speed of the stainless steel conveyor belt and flexibly coordinate the synchronization of multiple processes.

7. Pneumatic capping device has wide applicability. Pneumatic capping is designed with different specifications and different shapes. The screw head can be replaced to adapt to the capping of various caps.

8. The main pneumatic and electrical components are imported accessories to ensure stable system performance and excellent quality.

9. The equipment is equipped with a pump for pressure delivery, which greatly improves the production capacity.

10. With pause and forced stop functions, it is convenient for emergency handling in any situation



No.Model numberZLDG-2ZLDG-4ZLDG-6ZLDG-8ZLDG-10ZLDG-12
1Number of filling heads468101216
2Filling capacity1-5L
3Production capacity (bottles/hour)300-500500-700700-800900-10001000-12001400-1600
4Filling accuracy≤0.2%
5Power supply50HZ/60HZ   3N-380V 土  10%
6Power consumption0.75KW-7.5KW
7Equipped with air source pressure0.5-0.8MPa
8Work pressure0.6-0.7MPa
 Note: The productivity is based on a 4 liter bottle and the inlet pressure is 0.45-0.7 MPa


Linear plastic anti-cover capping machine

Product description

Plastic anti-cover capping machine is a kind of equipment that is placed under the conveyor belt and keeps synchronous operation with the conveyor belt. It gradually tilts downward and realizes the capping function through the capping chain plate. It is used for various plastic anti-counterfeiting caps The gland.

1.The machine uses stainless steel chain plates as a conveyor belt, which is reliable in work;

2.Using the principle of synchronous chain plate type capping, all kinds of plastic anti-counterfeiting caps can be capped without any scratches;

3. The body is made of stainless steel and has a beautiful appearance.


It has the characteristics of simple structure, reliable operation, convenient adjustment and good gland quality.



Applicable bottle typeall kinds of special-shaped bottles
Bottle mouth diameter18-38mm
Bottle height100~360 mm (can be customized beyond the range)
Power of the whole machine0.18 kW
Speed regulation modestepless speed regulation
Production efficiency8000-10000 bottles/hour
Dimensions1000×600×1500 mm

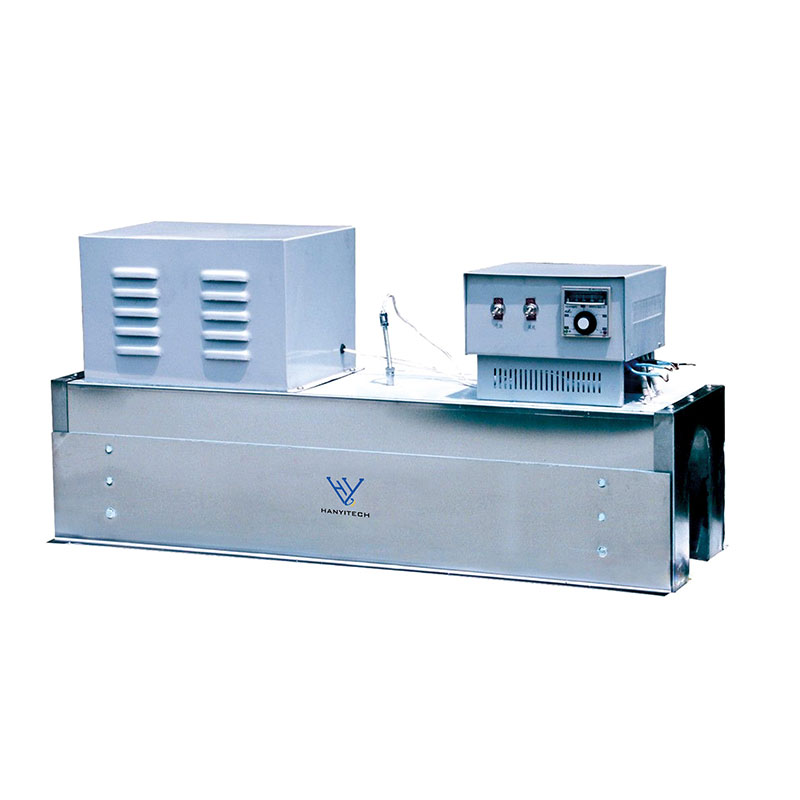

Rubber cap heat shrinking machine

Product description

A.The rubber cap shrinking machine is a new type of cover type hot glue cap shrinking machine designed by referring to the heat shrinking cap technology of many foreign manufacturers and our company's years of design and manufacturing experience.

B. This machine is suitable for heat shrinking PVC heat shrinkable rubber caps on a 5000 bottle/hour filling line. The heat shrinking temperature can be adjusted by the control knob.



This machine has high degree of automation, compact structure, convenient operation, low energy consumption and good thermal shrinkage effect.

Blast 25W
Electric heating tube380V/0.8KWx6

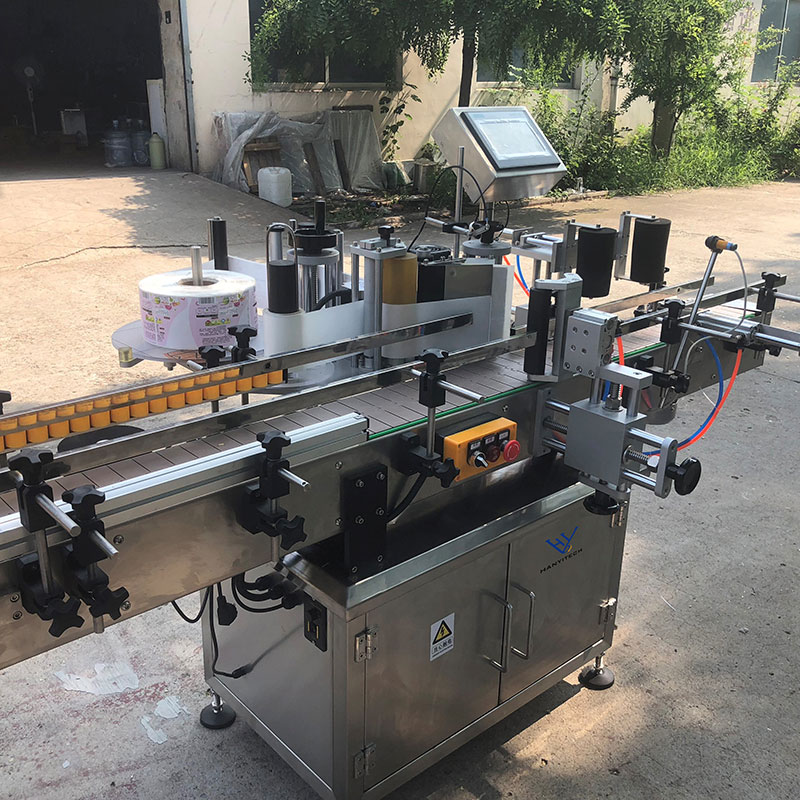

Automatic edible oil drum labeling machine

Performance and characteristics

► Advanced and friendly man-machine interface system, simple and intuitive operation, complete functions, with rich online help functions

► Suitable for labeling edible oil drums and bottles of various specifications and models

► The machine structure is simple, compact, easy to operate and maintain

► Universal bottle separation device, no need to change parts for any diameter bottle shape, quick adjustment

► Using well-known brand motor drive, stable and reliable delivery speed

► More configuration options→Sync hot coding machine, complete coding and labeling simultaneously

→Bottle unscrambler turntable

→Transparent label sensor


Labeling speed 40-150 pieces/min (related to material and label size)
Labeling accuracy±1.0mm (excluding material and label size)
Label size(L) 20-200mm (H) 10-80mm
Material sizeouter diameterφ20-φ150mm high 20-350mm
Applicable label roll inner diameterφ76mm
Applicable label roll outer diametermaximumΦ350mm
Machine size2000X800X1450(mm)
Consumption 1500W

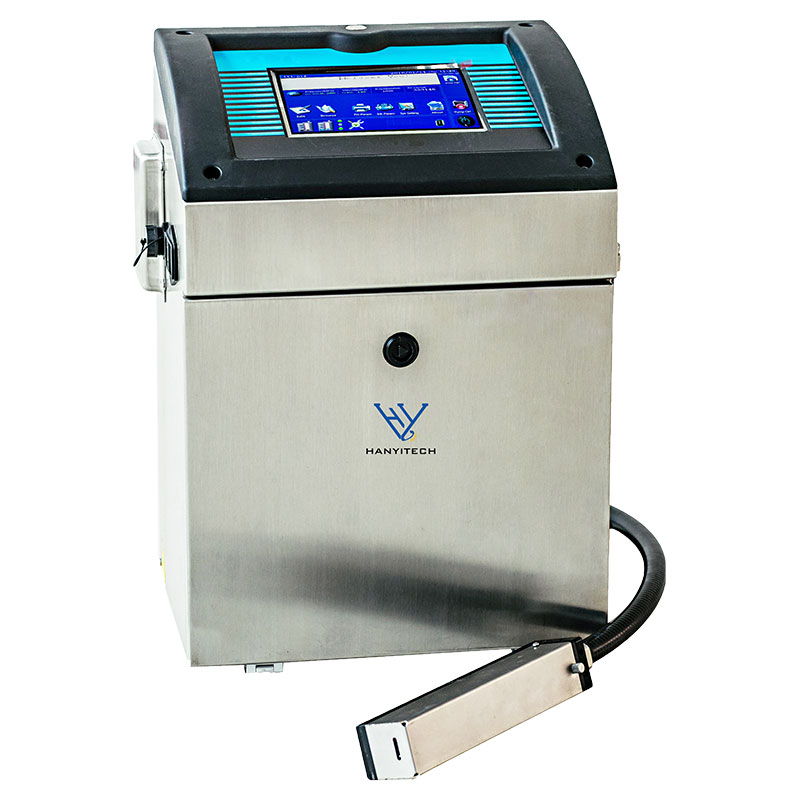

Automatic inkjet printer


Economical inkjet printer

Using quick-drying ink, excellent adhesion, suitable for the surface of various materials, such as film, glass, metal, plastic, PE, PVC, paper, wood, rubber, etc. In addition, for the requirements of different industries, we provide different inks, including standard inks, pigment inks, edible inks, gasoline-resistant inks, UV inks, etc.

Basic technical parameters

Printing ink: black, blue, red, yellow and other colors can be selected

Ink consumption: can print 70 million characters/liter (5×7)

Temperature range: 5-45℃

Humidity range: below 90%

Gross weight of the whole machine: 30KG

Dimensions: 246×338×550mm

Power requirements: AC220V 50HZ 100VA

Number of printing lines: 1~3 lines

Printing dot matrix: 6, 8.10, 12, 16, 24 dot matrix font, any dot matrix within 24×24

Chinese fonts: 16×16 Simplified Song, Traditional Song, Simplified Black, Simplified Kai, 24×24 Simplified Song and 32 dot matrix customization

Storage information: 1000 pieces of printing information can be stored

Printing speed: 900 characters/sec (5×7)

Printing height: 1.5mm~20mm adjustable, maximum width can be 9 times

Operation interface: Chinese menu display, with own graphic editing function

Chinese support: built-in international first and second Chinese character libraries

Chinese input: Pinyin input method, location input method, code input method

Printing content: automatic printing date, time, batch number, serial number, etc.

Printing materials: metal, plastic, glass, wood, pipelines and building materials surfaces can be printed

Printing distance: maximum 20mm from the nozzle to the surface of the object


Machine sample pictures (for reference only)

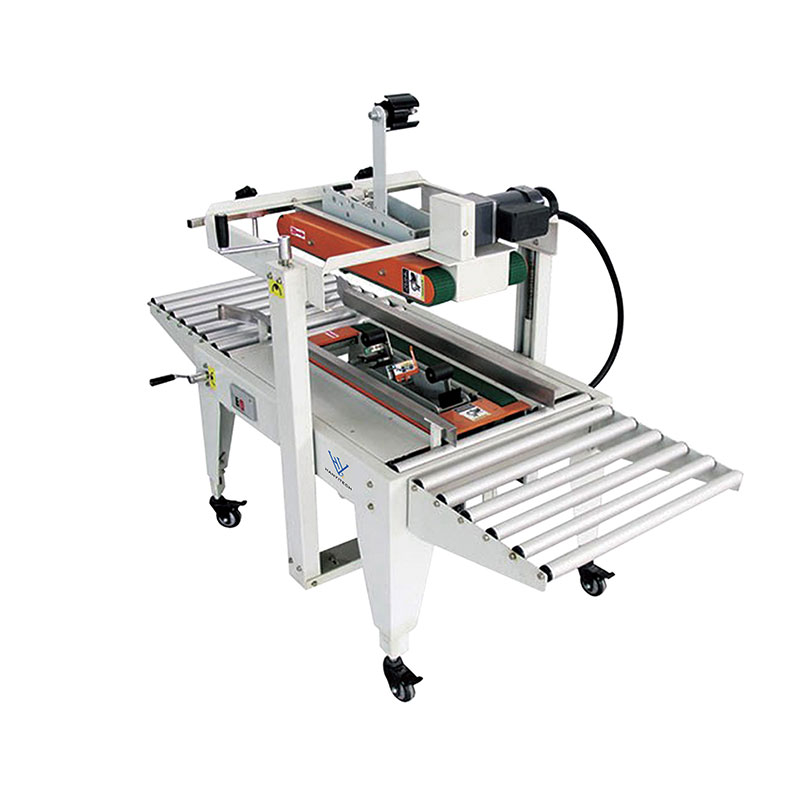

Tape sealing machine




Product manual:

It is suitable for packaging and carton sealing of various industries such as food, wine, medicine, daily necessities, light industry, chemical industry, etc. This carton sealing machine can be used for sealing operations alone, or it can be matched with filling and bundling. The use of assembly line is the equipment necessary for packaging standard assembly line operations.


Sealing capacity18 boxes/min
Tape width36, 48, 60 (mm)
Minimum box size150x90(mm)
Maximum box size500x750(mm)
Power supply220V50HZ
Workbench height500-750mm
